ORDER # HN235Product Overview

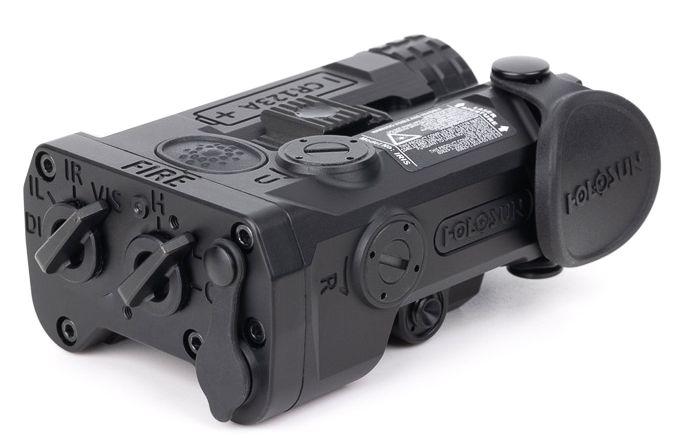

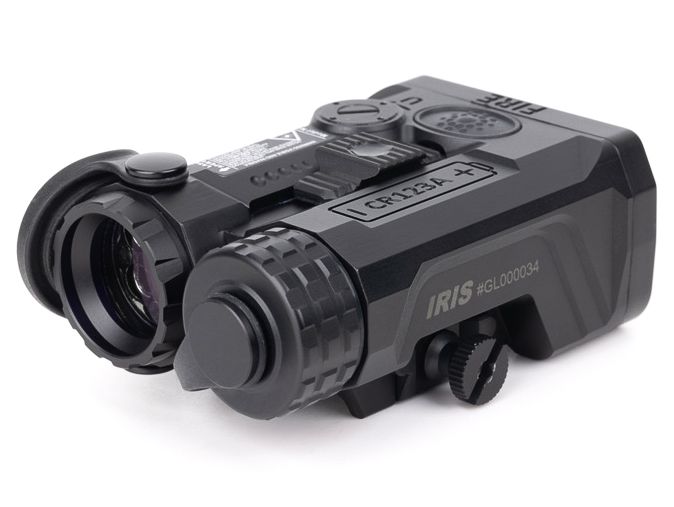

The Holosun IRIS-GR3 VCSEL (Vertical Cavity Surface Emitting Laser) IR Illuminator/Laser combines an IR illuminator, IR laser, and green aiming laser in a compact, lightweight unit designed for low-light target acquisition. Its redesigned 7075 aluminum housing reduces weight while maintaining durability. The centrally positioned fire button allows ambidextrous operation with momentary and constant ON modes. Rear-facing power and mode selector switches provide improved ergonomics, while the included ultra-compact two-button remote switch offers a VIS override function for enhanced control.
Holosun IRIS-3, IRIS Illuminator, Holosun, IRIS 3, VCSEL,
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | CR123A |
| Battery Life (Hours) | Up to modes |
| Thermal Modes | N/A |
| Digital Modes | N/A |
| Video Recording | N/A |
| Screen Refresh Rate | N/A |
| Digital Screen | N/A |
| Brightness Setting | High & Low |
PHYSICAL SPECS
| Window Size | N/A |
| Dimension (in) | 3.2x1.97x1.34 |
| Weight (oz) | 6.4 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Hard Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -20℃~51℃ |
| Submersion | IPX8 |
| Vibration | 1000G |
ILLUMINATOR SPECS
| White LED Candela | N/A |
| Laser & Illuminator Type | Dual Laser & IR Illuminator |
| White LED Output | N/A |
| IR Illuminator Class | Class 1 |
| IR Illuminator Output | VCSEL 60mW |
| IR Pointer Class | Class 1 |
| IR Pointer Output | 0.7mw |
| Visible Laser Class | 3R |
| Visible Laser Output | 5mw
|
